In the first part of this article we discussed about the pitfalls of building an underground survival shelter. We covered the site selection requirements for any suitable survival shelter but also the structural design issues folks should pay attention to. We also checked the water seepage problems that are likely to occur when building your shelter. Now, let’s continue with the other critical aspects of underground shelter building.
Ventilation and Air Quality
Maintaining proper ventilation and air quality is critical in any underground shelter. Without sufficient airflow and filtration, occupants can face health risks from oxygen depletion, carbon dioxide buildup, and airborne contaminants. A well-designed ventilation system ensures that the air remains safe, breathable, and comfortable during extended stays. This chapter explores the key considerations and strategies for achieving optimal ventilation and air quality.
1. The Importance of Air Exchange
Underground shelters are sealed environments, making air exchange essential to maintain oxygen levels and remove carbon dioxide and other harmful gases. A properly designed system introduces fresh air from outside while expelling stale air. Aim for an air exchange rate of at least 6 to 10 air changes per hour, depending on the shelter’s size and occupancy.
2. Designing the Ventilation System
An effective ventilation system includes the following components:
Air Intake Ducts: These draw in fresh air from above ground. Place them away from potential contaminants like exhaust pipes or debris.
Exhaust Ducts: These expel stale air and should be located on the opposite side of the shelter from the intake to maximize circulation.
Fans and Blowers: Use powered fans to maintain consistent airflow, even in passive systems. Opt for models with backup power supplies to ensure operation during outages.
3. Air Filtration Systems
In survival scenarios, external air may carry contaminants such as dust, smoke, or hazardous agents. Filtration systems ensure that only clean air enters the shelter:
HEPA Filters: High-Efficiency Particulate Air filters remove fine particles like dust, allergens, and smoke.
CBRN Filters: Chemical, Biological, Radiological, and Nuclear filters protect against airborne toxins, making them essential for shelters designed for nuclear or chemical threats.
Activated Carbon Filters: These remove odors, gases, and volatile organic compounds (VOCs) from incoming air.
4. Backup Manual Ventilation
Mechanical systems can fail due to power outages or equipment breakdowns. Include manual ventilation options, such as hand-cranked blowers, to ensure airflow during emergencies. While less efficient, they can provide temporary relief until repairs are made.

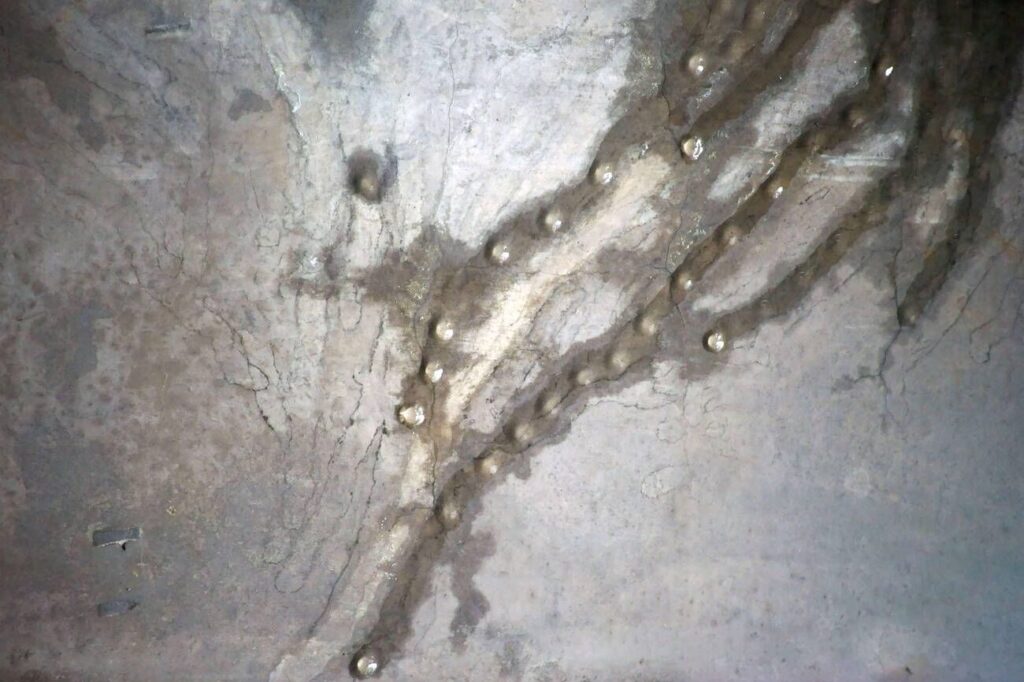

5. Managing Humidity and Moisture
High humidity levels in underground shelters can lead to condensation, mold growth, and discomfort. To control humidity:
Dehumidifiers: Use energy-efficient dehumidifiers to reduce moisture levels inside the shelter.
Insulation: Properly insulate walls and ceilings to minimize temperature differentials that cause condensation.
Vapor Barriers: Install vapor barriers to prevent moisture from seeping through walls and floors.
6. Monitoring Air Quality
Install monitoring devices to track key air quality metrics:
Oxygen Levels: Use oxygen sensors to ensure levels remain between 19.5% and 23.5%, the safe range for humans.
Carbon Dioxide (CO2) Detectors: High CO2 levels can cause dizziness, fatigue, and other health issues. Detectors help identify and address this problem early.
Humidity Sensors: Maintain humidity levels between 30% and 50% for comfort and to prevent mold.
7. Noise and Comfort
Ventilation systems can generate noise, which can be unsettling in a confined space. Choose low-noise fans and install soundproofing materials around ductwork. Ensure that vents are strategically placed to avoid drafts near sleeping or sitting areas.
8. Redundancy and Maintenance
Redundancy is critical for life-supporting systems like ventilation. Include spare parts for fans, filters, and other components in your shelter. Regularly inspect and maintain the system to ensure it operates reliably:
Replace filters periodically based on manufacturer recommendations.
Test powered and manual systems regularly to verify functionality.
Clear debris from intake and exhaust ducts to maintain airflow.
9. Combustion Safety
If your shelter includes fuel-based equipment like generators or heaters, ensure the ventilation system accommodates the exhaust. Install carbon monoxide (CO) detectors to prevent poisoning and provide a dedicated exhaust vent for these systems.
10. Sealing and Security
While ventilation is vital, it should not compromise the shelter’s security. Use airtight seals around vents and ducts to prevent gas or water intrusion. For survival shelters, camouflage or reinforce external air intakes to protect against sabotage or damage.
11. Emergency Scenarios
Plan for worst-case scenarios where external air becomes unusable. This could include nuclear fallout, chemical spills, or fires. Stockpile portable oxygen tanks or closed-loop rebreather systems for temporary use until conditions improve.
12. Testing During Construction
Test the ventilation system thoroughly before the shelter is operational. Simulate various conditions, such as power outages or increased occupancy, to ensure it performs effectively under stress.
Emergency Exits and Safety Measures
Emergency exits and safety measures are essential components of any underground shelter. They ensure that occupants can escape safely during unforeseen events such as structural damage, blockages, fires, or other life-threatening emergencies. Properly designed emergency exits and safety protocols can mean the difference between survival and catastrophe. This chapter outlines best practices for integrating these critical features into your shelter.
1. Importance of Redundancy
A single point of entry and exit poses significant risks. If the primary entrance becomes blocked or compromised, occupants could be trapped. Incorporate at least one secondary emergency exit to provide an alternate escape route. This redundancy ensures safety even in the event of structural collapse or sabotage.
2. Design of Emergency Exits
An effective emergency exit should be:
Accessible: Easy to locate and open from inside the shelter.
Reinforced: Constructed with durable materials like reinforced concrete or steel to withstand external pressures.
Discreet: Concealed from the outside to prevent tampering or discovery.
The exit should lead to a safe, easily navigable area, such as a secondary room, tunnel, or outdoor location at a safe distance from potential hazards.
3. Escape Tunnels
Many shelters include escape tunnels as part of their emergency exit strategy. These tunnels must be:
Stable and Secure: Reinforced with steel or concrete to prevent collapse.
Properly Drained: Include a drainage system to prevent flooding.
Ventilated: Equipped with small ventilation ducts to ensure breathable air during use.
The tunnel should be long enough to lead to a secure location but not so extensive that it becomes difficult to navigate quickly.
4. Fire Safety Measures
Fires in enclosed spaces can escalate rapidly. Incorporate the following fire safety measures:
Fire-Resistant Materials: Use fire-resistant coatings on walls and ceilings.
Extinguishers: Place fire extinguishers in easily accessible locations throughout the shelter.
Smoke Detectors: Install smoke alarms to provide early warnings of fires.
Fireproof Doors: Use fire-rated doors to contain potential fires and prevent them from spreading.
5. Escape Ladders and Hatches
Emergency exits often include vertical shafts with escape ladders. These must be:
Sturdy: Constructed of durable materials like steel to support multiple occupants.
Non-Slip: Designed with non-slip rungs for safe use in emergencies.
Covered: Equipped with a secure, weatherproof hatch that can be opened from the inside.
Ensure the ladder and hatch are regularly inspected and maintained to ensure functionality.
6. Structural Integrity and Safety Zones
Design the shelter with safety zones that can provide temporary protection in case of partial collapse or blockage. These zones should include reinforced ceilings and walls to shield occupants from falling debris and provide a safe space for regrouping.
7. Emergency Lighting
Power failures during emergencies are common. Install emergency lighting systems that activate automatically during outages. Battery-powered or solar-charged LED lights are ideal for providing reliable illumination during critical moments.
8. Alarm Systems
Early warning systems can provide crucial time to act. Include alarms for:
Structural Failures: Sensors to detect shifts, cracks, or collapses.
Gas Leaks: Alarms for carbon monoxide (CO) and other hazardous gases.
Fire or Smoke: Fire alarms connected to a central warning system.
Ensure alarms are audible throughout the shelter and equipped with backup power sources.
9. Training and Drills
Occupants should be familiar with all safety features and protocols:
Conduct regular drills to practice evacuation procedures.
Train occupants on how to use fire extinguishers, ladders, and emergency hatches.
Clearly label emergency exits and provide instructions in visible locations.
10 Emergency Supplies Near Exits
Stock emergency exits with essential supplies, such as:
Flashlights and extra batteries.
First aid kits.
Basic tools (e.g., crowbars, hammers) for removing debris or opening hatches.
Respiratory masks to protect against smoke or dust inhalation.
11. Securing Against External Threats
While emergency exits are essential for occupant safety, they must also be secure against external threats:
Use lockable hatches or camouflaged exits to prevent unauthorized access.
Install motion sensors or cameras to monitor activity near exits.
Reinforce external areas to withstand tampering or attack.
12. Periodic Testing and Maintenance
Regular inspections and maintenance ensure that emergency exits and safety features remain operational:
Test hatches, locks, and ladders for ease of use.
Inspect tunnels and shafts for structural integrity.
Replace worn or damaged components immediately.
13. Planning for Worst-Case Scenarios
Consider potential scenarios such as flooding, debris blockages, or fire near exits. Design contingency plans for each scenario, such as waterproof escape hatches or alternative evacuation routes.
Conclusion
Building a survival shelter is a significant investment in safety and security, but even small mistakes can compromise its functionality, comfort, and reliability during a crisis. Avoiding common pitfalls requires thorough planning, attention to detail, and a commitment to quality construction.
One critical error is neglecting site selection, as improper placement can expose your shelter to flooding, unstable soil, or external threats. Equally important is overlooking structural integrity—insufficient reinforcement or subpar materials can lead to catastrophic failures under pressure. Additionally, inadequate ventilation and air filtration can endanger occupants by allowing toxic gases or poor air quality to develop.
Water seepage is another frequent issue that can damage your shelter and its contents, highlighting the necessity of robust waterproofing and drainage systems. Ignoring emergency exits and safety measures can trap occupants during life-threatening situations, underscoring the need for redundancy and well-maintained escape routes.
Finally, failing to test and maintain your shelter regularly can turn minor issues into major problems over time. A well-constructed survival shelter is not just about immediate readiness—it’s about ensuring long-term reliability through careful planning, regular inspections, and proactive problem-solving.
